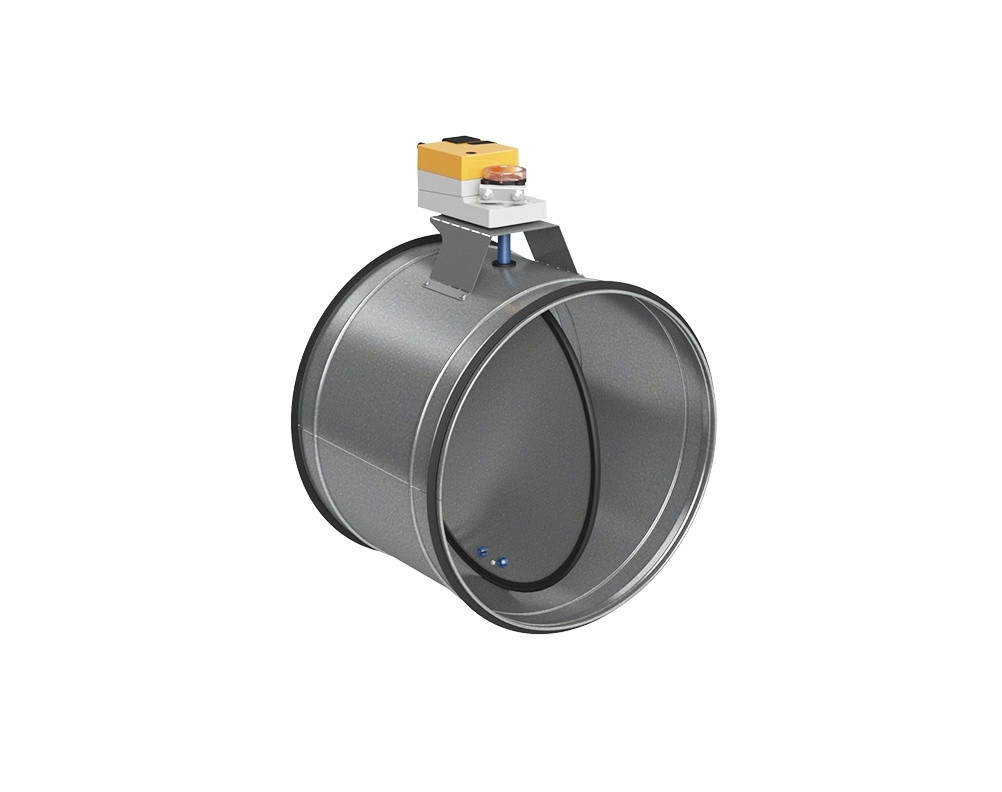

AGUJ-M, SRU-M - uzavírací klapky
Uzavírací klapky se servopohony BELIMO
LM-24-A - pro jednotky VERSO standard s el. ohřívačem
LF-24 - pro jednotky VERSO standard s vodním ohřívačem
Třída těsnosti C
Základní rozdělení uzavíracích klapek a VZT jednotek
| VZT jednotka | Klapka + servopohon s vratnou pružinou (vodní ohřev) |
Klapka + servopohon bez vratné pružiny (el. ohřev) |
|||||||
| Verso R 1000 H/V/U | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso R 1300 H/V/U/F | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso R 1500 H/V/U | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso R 1700 H/UH | SRU-M-300×400 + LF24 | SRU-M-300×400 + LM24 | |||||||
| Verso R 1700 V/UV | SRU-M-400×300 + LF24 | SRU-M-400×300 + LM24 | |||||||
| Verso R 2000 F | AGUJ-M-355 + LF24 | AGUJ-M-355 + LM24 | |||||||
| Verso R 2000 H/UH | SRU-M-300×400 + LF24 | SRU-M-300×400 + LM24 | |||||||
| Verso R 2000 V/UV | SRU-M-400×300 + LF24 | SRU-M-400×300 + LM24 | |||||||
| Verso R 2500 H | SRU-M-700×300 + LF24 | SRU-M-700×300 + LM24 | |||||||
| Verso R 3000 H/UH | SRU-M-400×500 + LF24 | SRU-M-400×500 + LM24 | |||||||
| Verso R 3000 V/UV | SRU-M-500×400 + LF24 | SRU-M-500×400 + LM24 | |||||||
| Verso R 3000 F | SRU-M-500×400 + LF24 | SRU-M-500×400 + LM24 | |||||||
| Verso R 4000 H/UH | SRU-M-400×500 + LF24 | SRU-M-400×500 + LM24 | |||||||
| Verso R 4000 V/UV | SRU-M-500×400 + LF24 | SRU-M-500×400 + LM24 | |||||||
| Verso R 5000 H | SRU-M-1000×500 + LF24 | SRU-M-1000×500 + LM24 | |||||||
| Verso R 5000 V | SRU-M-1100×300 + LF24 | SRU-M-1100×300 + LM24 | |||||||
| Verso R 7000 H | SRU-M-1200×600 + LF24 | SRU-M-1200×600 + LM24 | |||||||
| Verso CF 1000 H/V/U/F | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso CF 1300 H/V/U/F | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso CF 1500 F | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso CF 1700 H/V/U | AGUJ-M-315 + LF24 | AGUJ-M-315 + LM24 | |||||||
| Verso CF 2300 H/UH | SRU-M-300×400 + LF24 | SRU-M-300×400 + LM24 | |||||||
| Verso CF 2300 V/UV | SRU-M-400×300 + LF24 | SRU-M-400×300 + LM24 | |||||||
| Verso CF 2500 F | SRU-M-700×300 + LF24 | SRU-M-700×300 + LM24 | |||||||
| Verso CF 3500 H/UH | SRU-M-400×500 + LF24 | SRU-M-400×500 + LM24 | |||||||
| Verso CF 3500 V/UV | SRU-M-500×400 + LF24 | SRU-M-500×400 + LM24 | |||||||
| Verso CF 5000 V | SRU-M-1100×300 + LF24 | SRU-M-1100×300 + LM24 | |||||||
| Verso S 1300 F | AGUJ-M-250 + LF24 | AGUJ-M-250 + CM24 | |||||||
| Verso S 2100 F | SRU-M-700×200 + LF24 | SRU-M-700×200 + LM24 | |||||||
| Verso S 3000 F | SRU-M-600×400 + LF24 | SRU-M-600×400 + LM24 | |||||||
